Flexible/Cuved surface plate lamination machine

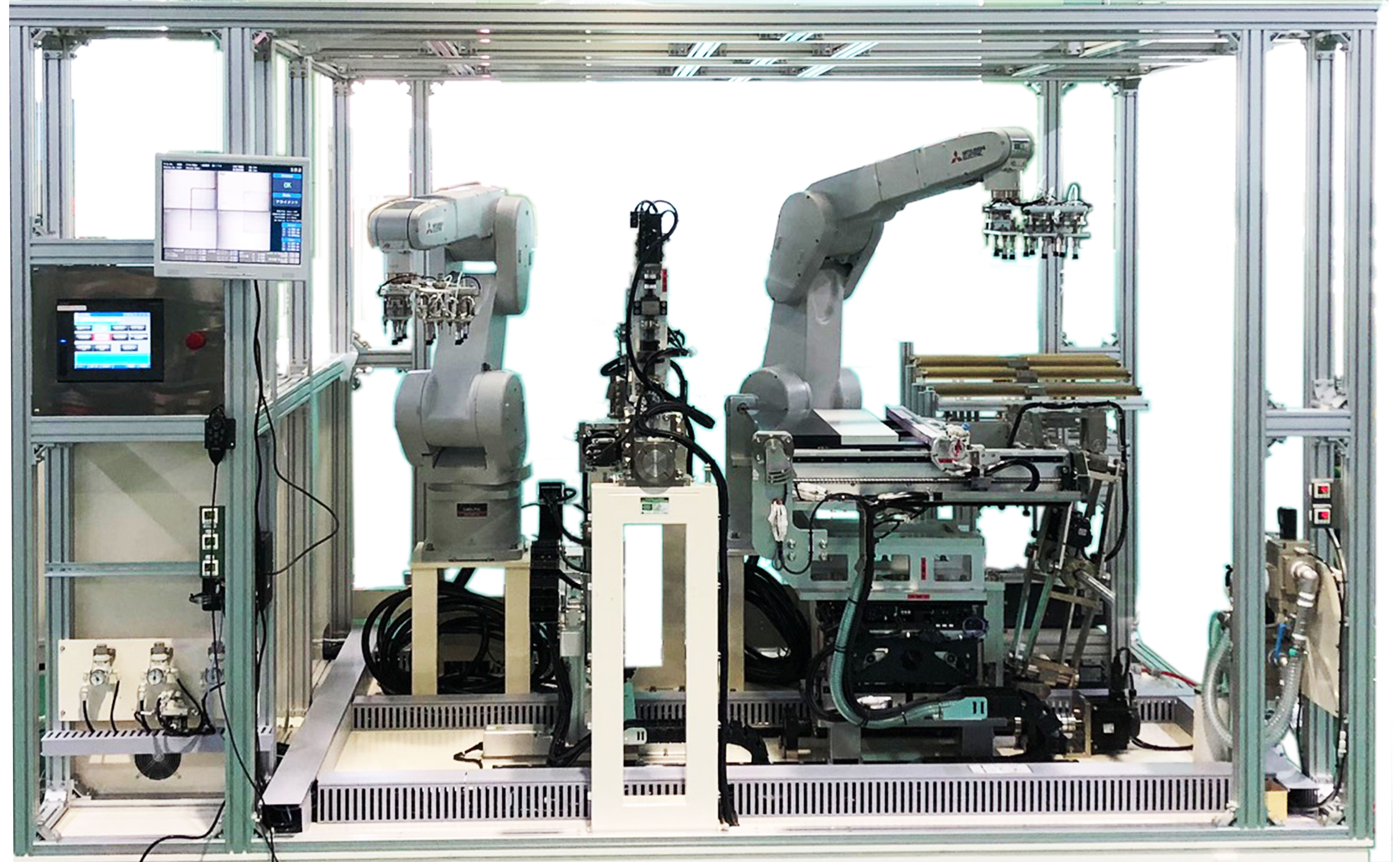

Multiple type Curved surface lamination machine with Robot

Ref ID:F3-1_DB03

This machine is for lamination OCA, Flex panel and Optical film on curved shape glass.

  • 1.Single curved surface(凹 /凸 lamination), S type and J type are available.
  • 2.Lamination test at our site with actual machine is available.

Supplemental Specification ※This is a sample. Custom machine is available.
Adopted Performance In-vehicle Front curved surface display lamimnation
Curved surface glass plate Film lamination
Accuracy ±0.1
Tact 60sec/ 600o×600o
Work Loading Robot Loading / Inline
Machine Size L3200 x W2100 x H2200
Work Size Max L600xW600xt2.0
Min L120xW300xt0.5
Panel Radius(R) > 50mm
Opetion Inline/Offline Loading/Unloading
Multiple type Jig

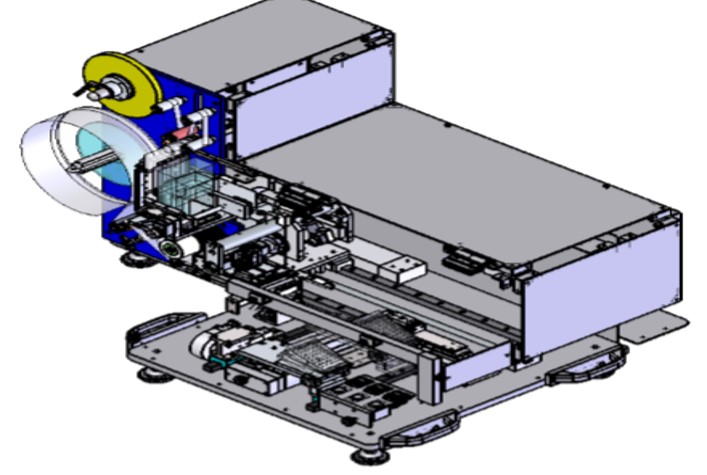

Compact Curved surface Film Lamination Machine

Ref ID:F3-2_APF-07S Y311

Laminate a OCA to loaded work by hand.
Supply OCA with hopper, transfer a sheet type OCA that changed to Roll type,
vacuum by lamination head with synchronized sending, laminate on producto.

  • 1. Lamination Touch Panel and Cover Glass is available.
  • 2. By change the stage, Curved surface/Flat surface Lamination is available.

Supplemental Specification ※This is a sample. Custom machine is available.
Adopted Performance    OCA lamination machine
In-vehicle Curved surface Lamination
Watch Curved surface Lamination
Poralizing Plate Lamination system
Decorative FILM Lamination system
Accuracy +/-  200μm  (alignment without Camera)
Tact 15sec / piece
Work Loading Film Auto Loading  Panel Loading by hand
Machine Size L1200 x W 800 x H 1500
Work Size Max 100x150mm
Option Cleaning before lamination is available.
Rigid lamination is available.

These are samples. Custom machine is available.
